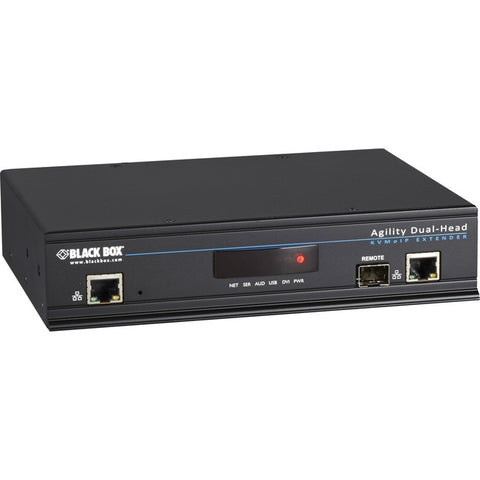

Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver

Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver

We currently have 21 in stock.
SKU: MPN: ACR1020A-R UPC:
Product Description

The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.


  • Data cyncryption via 128-bit AES.
  • Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth.
  • Magic Eye support to handle dithered video graphics.
  • Scalable high performance IP-Based KVM Extender and KVM Matrix system.
  • No-loss compression minimizes bandwidth use while maximizing the user experience.
  • Maximum resolution is 1920x1080.
  • Dual-head with VNC port for remote access and management.

Have a Question before ordering?

We will gladly answer within 24 hours!

Ask a Question

The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.


  • Data cyncryption via 128-bit AES.
  • Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth.
  • Magic Eye support to handle dithered video graphics.
  • Scalable high performance IP-Based KVM Extender and KVM Matrix system.
  • No-loss compression minimizes bandwidth use while maximizing the user experience.
  • Maximum resolution is 1920x1080.
  • Dual-head with VNC port for remote access and management.
