Panorama Antennas External Mount 4G/5G MiMo Antenna

Panorama Antennas External Mount 4G/5G MiMo Antenna

  • $ 148.99

We currently have 57 in stock.
SKU: MPN: WMMG-7-38-03NJ UPC:
Product Description

Supports MiMo & Diversity across 4G/5G Two wideband elements with gain Durable wall mount housing Suitable for mast, wall and desk mounting

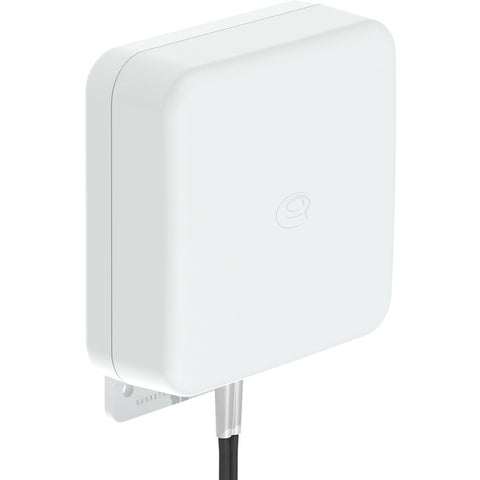

The WMMG antenna provides an innovative and future proof solution for 3G/4G and 3.8GHz 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the WMMG is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2200-3800MHz the WMMG provides extra gain performance where it is needed most.

The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided.

5 metres (16') of fitted low loss double shielded twin cable minimises exposed connector joints and simplifies cable management for easy installaton.

The WMMG is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.


  • Delivers?enhanced performance at 698 MHz to 960 MHz operating frequency range
  • Designed for GPS applications that require greater accuracy
  • Antenna can be mounted as desktop/wall/mast
