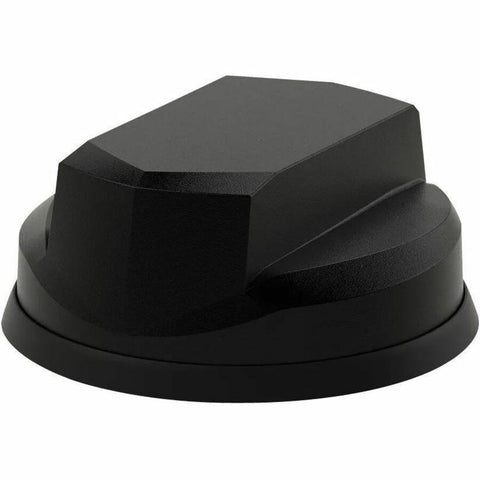

The LG-IN2457 is a high performance 2x2 MiMo LTE, 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
Low profile antenna with 5 functions in 1
2x2 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi and GPS/GNSS in one housing
Kits with extension cables available for a range of LTE routers
Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
Provides optimized pattern coverage with 617 MHz to 960 MHz frequency
Get improved signals for your wireless router with this antenna
Eases up the installation procedure thanks to its 360-degree horizontal pattern
